6 ” Lucas, Model 40T-1310, CNC Table Type Horizontal Boring Mill, 72″ x 158″ Table, 120″ Vert.

  • SWINDLE DIAMETER (IN.): 6
  • TAPER IN SPINDLE (IN.)  #50 CAT
  • VERTICLE TRAVEL OF HEADSTOCK (IN.)  120
  • CROSS TRAVEL OF TABLE, X – AXIS (IN.)  156
  • SPINDLE TRAVEL, Z – AXIS (IN.)  48
  • SPINDLE TRAVEL, W -AXIS (IN.)  72
  •  SPINDLE SPEEDS (RPM) 5.6 – 1120
  • TABLE SIZE (IN.)  72 X 158

Equipped With:

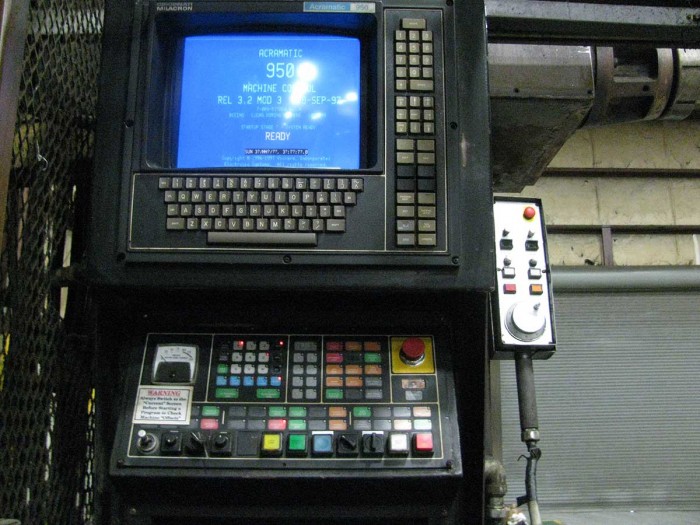

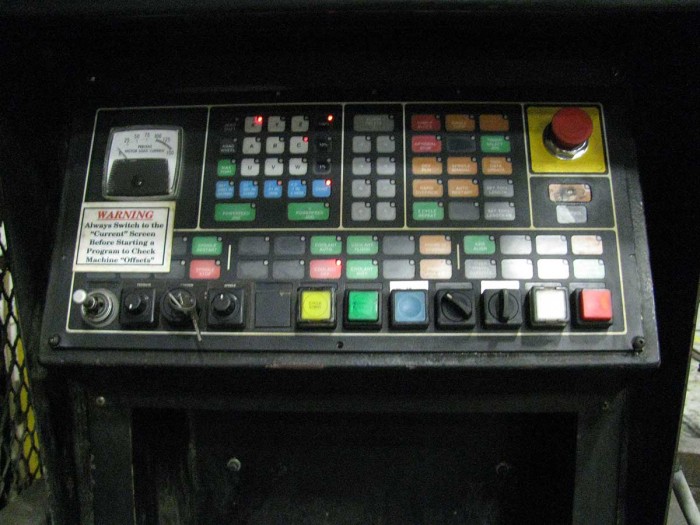

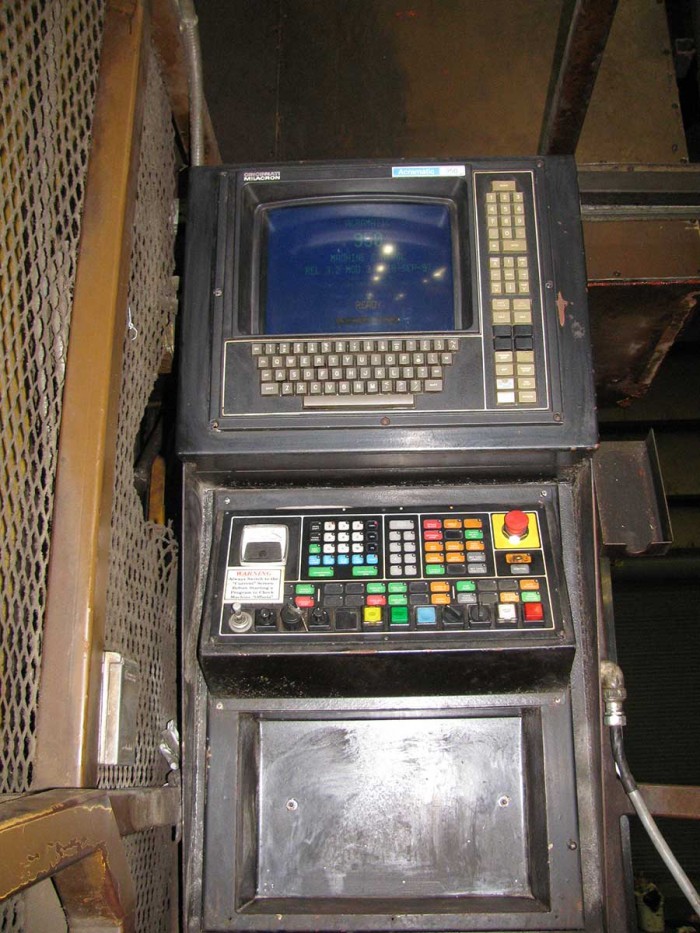

  •  ACRAMATIC 950 5 – Axis CNC Controls with Color CRT
  • Axis Interface for Rotary Table 
  • Power Draw Bar
  • Probing, Coolant
  • Double Table Outrigger Supports 
  • Chip Conveyor  
  • Hardened Ways on all Axes 
  • Ball Screws & Independent Servo Drives 
  • 50 HP Spindle Drive
