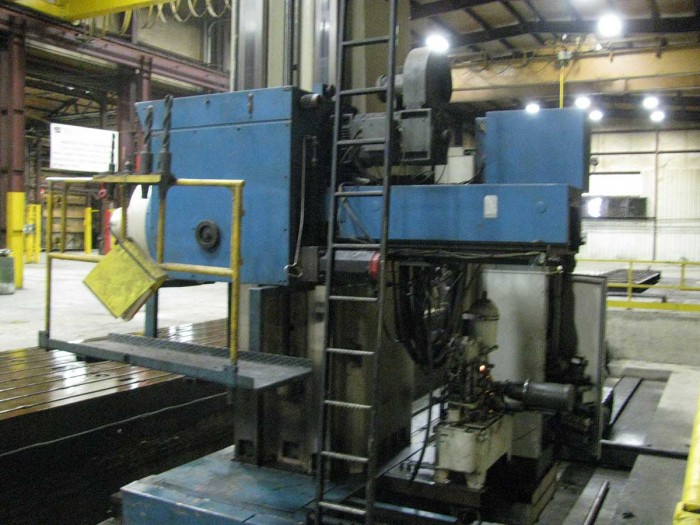

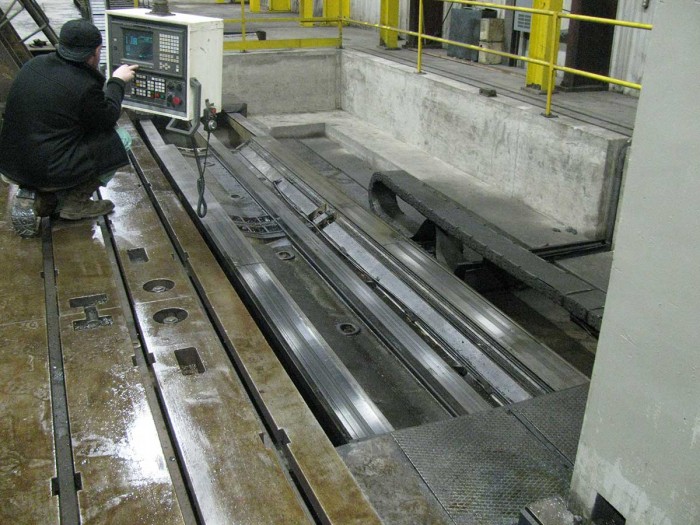

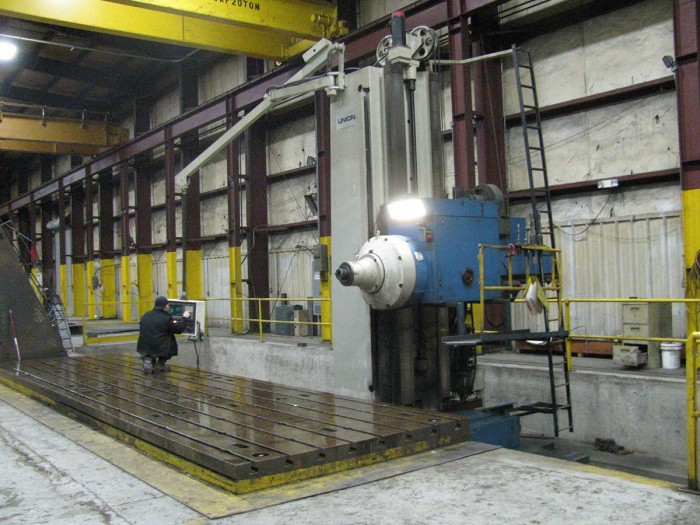

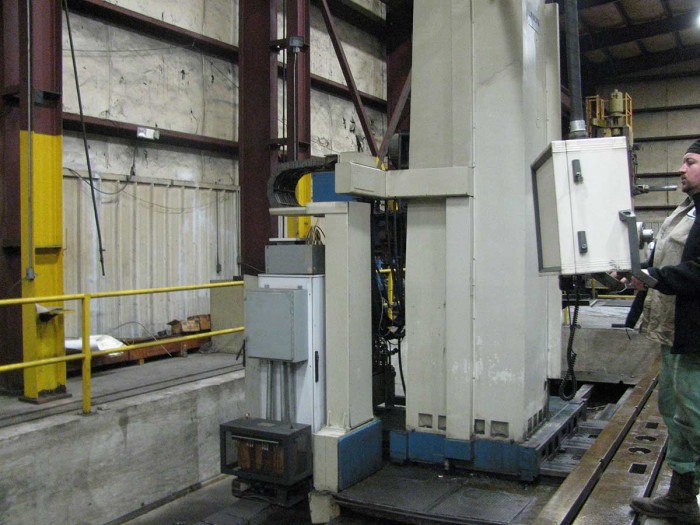

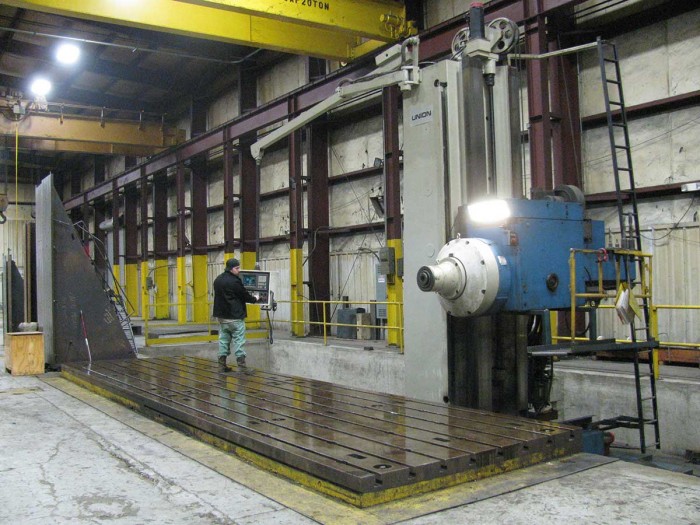

5.12″ UNION CNC Floor Type Horizontal Boring Mill, Model BFP130, 4 AXIS, Retrofitted in 2010

Specifications:

  • SPINDLE DIAMETER: 5.12″
  • TAPER IN SPINDLE: #50
  • VERTICLE TRAVEL OF HEADSTOCK: 118”
  • HORIZONTAL COLUMN TRAVEL: 32’ (393”)
  • RAPID TRAVERSE {X & Y} (IPM): 196
  • RAPID TRAVERSE {Z & W} (IPM): 133
  • SPINDLE TRAVEL {IN & OUT}: 35.37″
  • COLUMN INFEED {IN & OUT}: 16.25″
  • SPINDLE SPEEDS { 4 RANGES INF. VAR }: 5 – 1000 RPM

Equipped With:

  • POWER DRAW BAR
  • RIGHT ANGLE HEAD W/ 32” REACH 
  • TELESCOPING STEEL WAY COVERS ON X – AXIS 

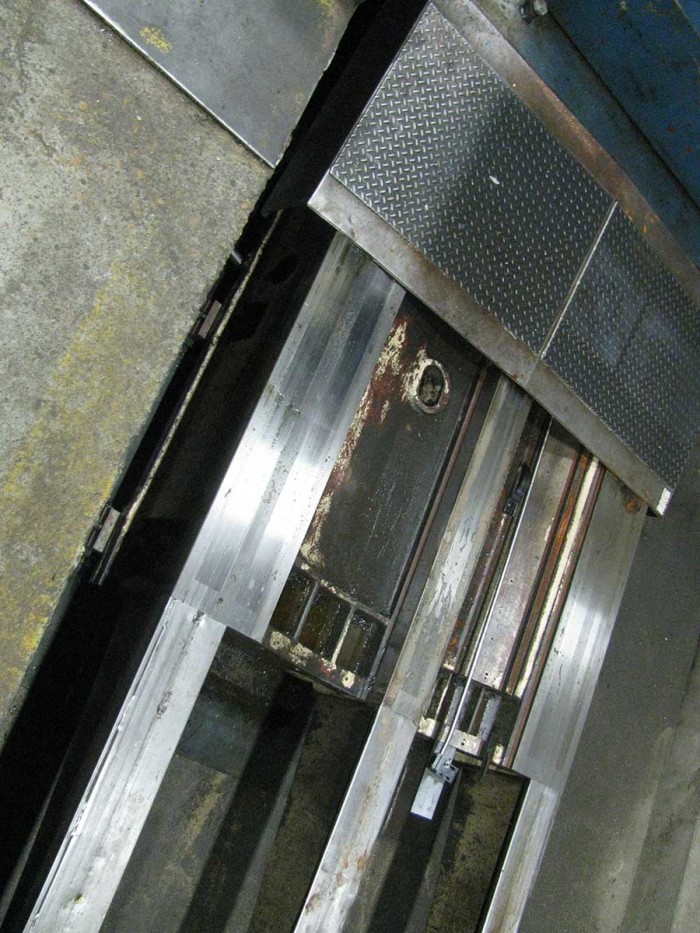

  • HARDENED & GROUND WAYS 
  • 67 HP SPINDLE DRIVE 

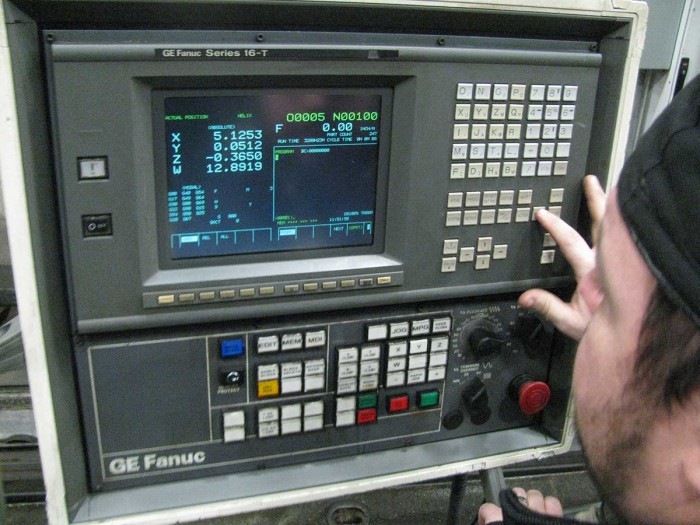

  • FANUC 16 CNC CONTROL  
  • RETROFITTED 2010 WITH NEW CONTROL AND SERVOS  
  • BED REGROUND
  • UNDER POWER IN AR PLANT



Please contact us for additional information, pictures, and pricing!
